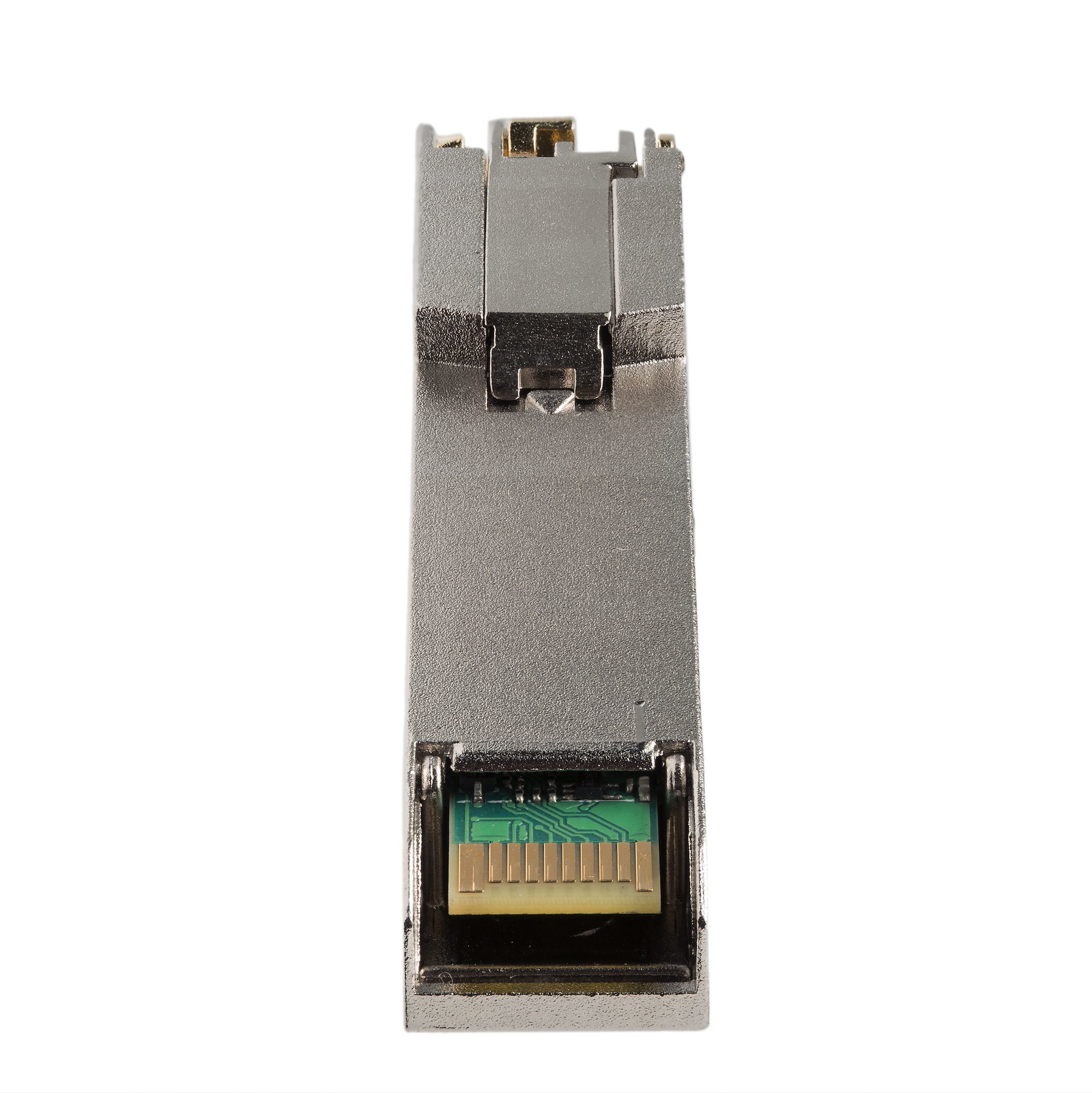

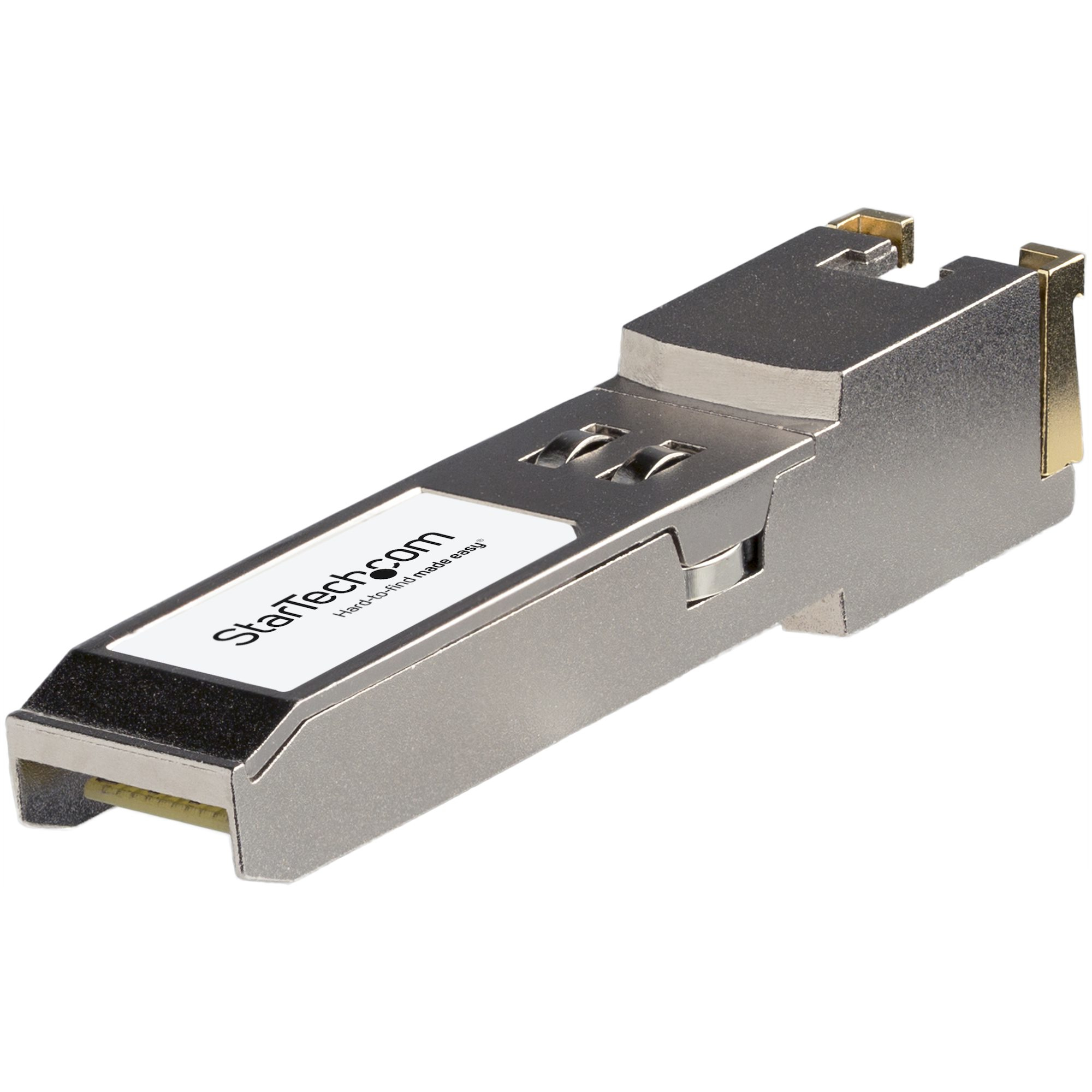

StarTech.com HPE JL563A Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE 8320, 8325-48Y8
£279.20
£335.04 inc. VAT
Low Stock(12)MPN: JL563A-ST
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+
Key Features
StarTech.com HPE JL563A Compatible SFP+ Module, 10GBASE-T, SFP to RJ45 Cat6/Cat5e, 10GE Gigabit Ethernet SFP+, RJ-45 (Copper) 30m, HPE 8320, 8325-48Y8, 10Gbps SFP+ Module Transceiver
Lifetime Warranty (JL563A-ST)
SFP+ transceiver module (equivalent to: HP JL563A)
10GbE
10GBase-T, 1000Base-T, 100Base-TX, 10Base-T
RJ-45
up to 30 m
for HPE Aruba 8320, 8325-48Y8C, MACsec Advanced Module, CX 10000 Empty Chassis
Product Overview
AI-generated summary
For the right buyer, this is a solid “get the link up” part: an SFP+ to RJ45 10GBASE‑T transceiver that should work in HPE switch ports like the 8320/8325-48Y8 line. If you’ve got 10GBASE‑T copper runs already (Cat6/Cat5e) and you don’t want to pay for optics + multimode or deal with fibre patching, this tends to be a practical way to keep things simple. At ~£280 ex‑VAT, it’s not impulse buy cheap, but for a working replacement/module where copper cabling is already in place, the cost often pencils out versus re-cabling or swapping port types.
That said, I’d only buy it if you’re confident the HPE model/firmware is compatible and you’re not trying to save money on something that might be picky—HPE environments can be a bit “catalogue strict” with third-party optics. Also, 10GBASE‑T has higher power and can be fussier about cable quality/installation than people expect, so if your Cat6 runs aren’t top-notch (or are long/marginal), you’ll feel it as flakiness. If your goal is reliability and you can use fibre instead, native HPE-compatible optics can be the calmer route—if your cabling situation makes copper unavoidable, this is a reasonable choice for datacentre pragmatists who want functionality without overcomplicating the network.
Specifications
Performance
SFP transceiver typeCopper
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Maximum transfer distance30 m
Ethernet LANY
Features
Product colourSilver
Hot-swapY
Mean time between failures (MTBF)510469759 h
Brand compatibilityHP
Compatible productsJL563A
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UR, REACH
Weight & dimensions
Width68 mm
Depth13.7 mm
Height13.8 mm
Weight15 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width90 mm
Package depth115 mm
Package height31 mm
Package weight50 g
Logistics data
Master (outer) case width90 mm
Master (outer) case length115 mm
Harmonized System (HS) code85369010
Master (outer) case height31 mm
Products per master (outer) case1 pc(s)
