ShopMotherboardsASUS WS C422 SAGE/10G Intel® C422 LGA 2066 (Socket R4) CEB
ASUS WS C422 SAGE/10G Intel® C422 LGA 2066 (Socket R4) CEB
View 1

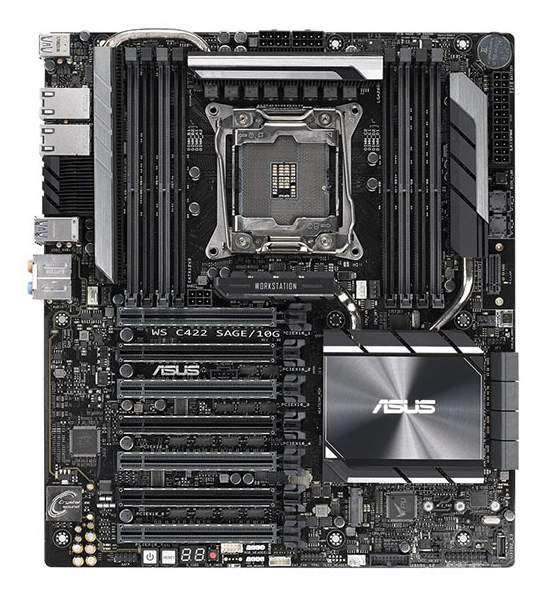

View 2

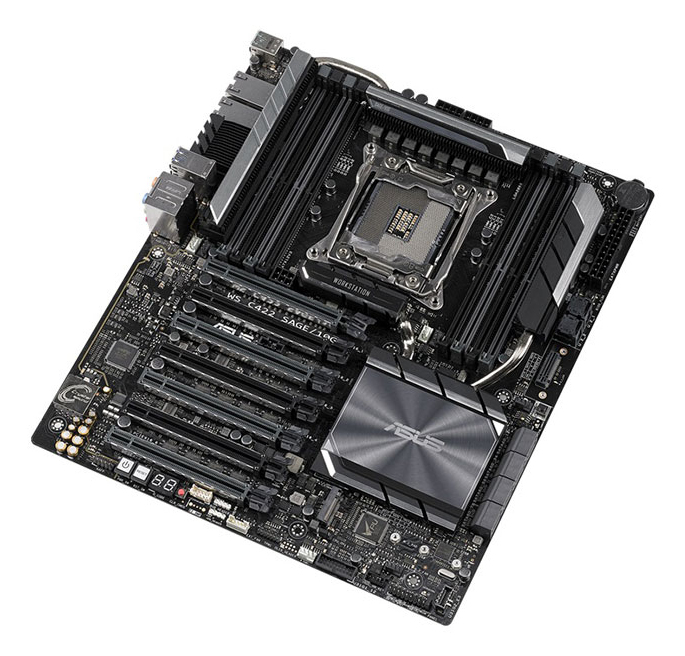

View 3

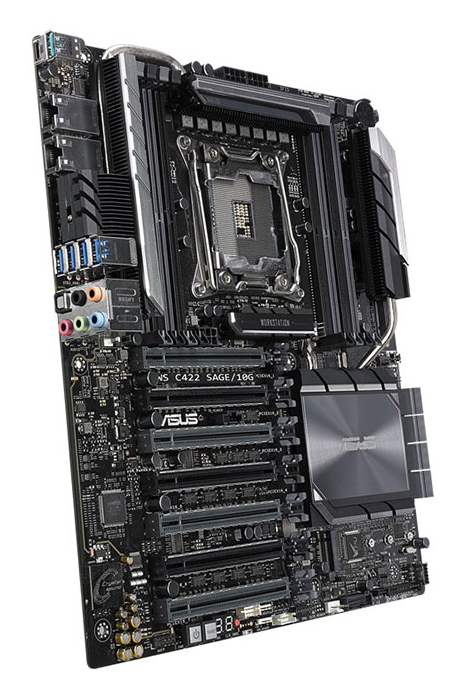

View 4

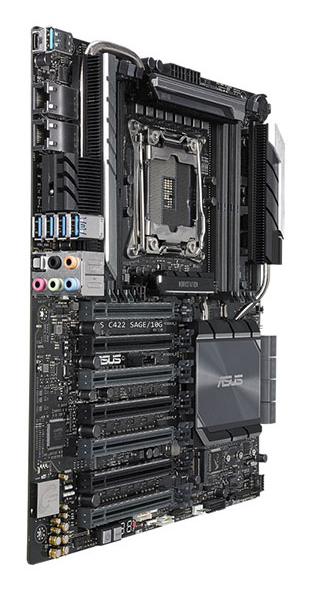

View 5

ASUS WS C422 SAGE/10G Intel® C422 LGA 2066 (Socket R4) CEB

£712.99

£855.59 inc. VAT

Out of Stock(0)MPN: 90SW00J0-M0EAY0
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

ASUS WS C422 SAGE/10G
Motherboard
SSI CEB
LGA2066 Socket
C422 Chipset
USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
2 x 10 Gigabit LAN
HD Audio (8-channel)

Product Overview

AI-generated summary

If you’re buying this ASUS WS C422 SAGE/10G, you’re typically doing it for one reason: you want a workstation-leaning board that’s built for stability and serious uptime, not the usual “works today” consumer experience. The C422 platform is very much a business/workstation ecosystem play, so it suits engineers, rendering boxes, lab servers, small CAD/render farms, or any environment where you’d rather have predictable behaviour, decent management features, and longer-term component maturity. At £658.36 ex-VAT, it’s not cheap, but it’s in the range where you stop thinking “cheap motherboard” and start thinking “saves support time later”.

That said, I wouldn’t buy it unless you actually need the C422/workstation angle. If your goal is a mainstream workstation for office/CAD light work, you may get better value elsewhere—especially if you don’t require the specific server-ish robustness this line is aimed at. Also, double-check CPU compatibility and platform availability before you commit; older workstation sockets can be awkward if you’re trying to build “right now” from what’s easiest and cheapest. In short: buy it if you’re building a mission-critical workstation-class system and want longevity; skip it if you just want value and flexibility, because that money is easy to spend more efficiently.

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 2066 (Socket R4)
Lithography14 nm

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory channelsQuad-channel
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory512 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportY
RAID levels0,1,5,10

Graphics

Parallel processing technology support4-Way CrossFireX,4-Way SLI

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
ATX Power connector (24-pin)Y
Number of EATX power connectors1

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2

Network

Ethernet LANY
Ethernet interface type10 Gigabit Ethernet
LAN controllerIntel X550-AT2
Wi-FiN

Features

Motherboard chipsetIntel C422
Audio chipRealtek ALC S1220A
Audio output channels7.1 channels
Component forWorkstation
Motherboard form factorCEB
