ShopCollaboration AccessoriesATEN SN3401P serial server RS-232/422/485
ATEN SN3401P serial server RS-232/422/485
View 1
View 2
View 3
View 4

ATEN SN3401P serial server RS-232/422/485

£165.04

£198.05 inc. VAT

Low Stock(10)MPN: SN3401P
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

ATEN SN3401P
Device server
with PoE
1 ports
RS-232, RS-422, RS-485, 100Mb LAN
desktop / wall / DIN rail mountable

Product Overview

AI-generated summary

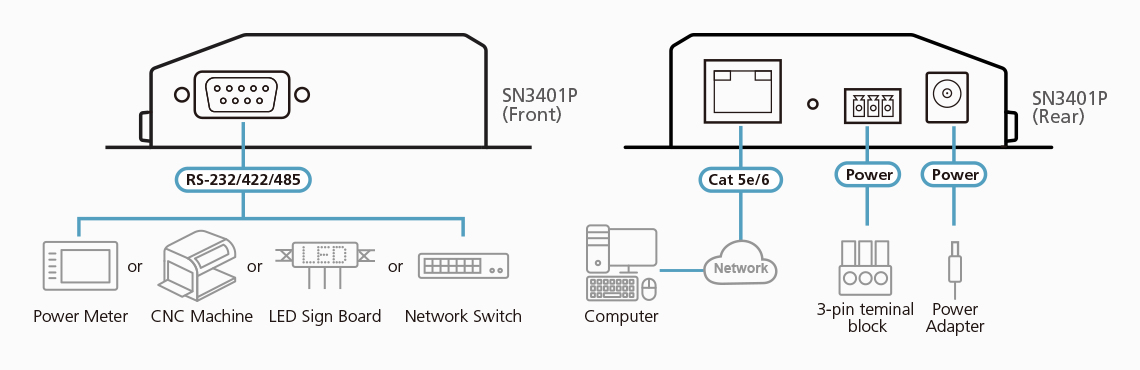

ATEN’s SN3401P is the sort of “boring but useful” serial server that saves you from ripping out a whole legacy setup. If you’ve got RS-232/422/485 gear that needs to talk to a modern network—industrial controllers, serial sensors, older access control / building systems—this is a sensible way to bridge that gap without replacing the endpoints. For £164.95 ex-VAT, the value is pretty solid *when your problem is specifically network-enabling serial devices*, not when you’re trying to modernise something that’s already got Ethernet/Wi‑Fi built in.

I’d buy it for teams that are comfortable supporting legacy comms and want reliable connectivity over time (as opposed to “it worked once”). Where it *isn’t* great is if you’re expecting plug-and-play with no software knowledge: serial setups can involve port settings, baud rates, protocol nuances, and how your monitoring/app expects to reach the port. In other words, if your environment is mostly casual desktop peripherals or you don’t have anyone who can troubleshoot serial comms, you’ll likely burn more time than the device is worth. If you *do* have that capability, this ATEN is a practical, dependable choice.

Specifications

Technical details

Serial ports quantity1
Serial interface typeRS-232/422/485
Isolation1.5 kV
Surge protection voltage2 kV
Ethernet LAN data rates10,100 Mbit/s

Ports & interfaces

Ethernet LANY
Ethernet LAN (RJ-45) ports1
Terminal block portY

Power

Power source typeDC,PoE
Power consumption (max)1.3 W
Power consumption (typical)1.18 W
Input voltage100 - 240 V
Input frequency50 - 60 Hz

Indication

LED indicatorsPower,Status

Weight & dimensions

Width117 mm
Depth98 mm
Height26 mm
Weight210 g
Package width59 mm

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95 %

Design

Product colourBlack
Housing materialMetal
Reset buttonY
DIN rail mountingY
SafetyUL 60950-1, UL 62368-1

Packaging content

DIN rail kit includedY
Terminal block includedY
Number of foot pads4 pc(s)
User guideY
